Bộ kéo dài USB 60m, 4 cổng USB 2.0, hỗ trợ mọi hệ điều hành. AV Access U2EX50
- Hỗ trợ thiết bị lưu trữ USB 2.0 (Lên đến 480Mbps) qua cáp Cat5e / Cat6 lên đến 60m và thiết bị USB-HID lên đến 80m.
- 4 thiết bị kết nối USB được hỗ trợ kết nối bởi Hub.
- Thiết bị phát được cấp nguồn bằng cổng USB, thiết bị thu được cấp nguồn bằng nguồn DC có thể khóa với 500mA cho mỗi thiết bị USB
- Giải pháp phần cứng 100% mà không cần cài đặt trình điều khiển; Hỗ trợ tất cả các hệ điều hành chính: Windows, Mac OS và Linux
- Tương thích với USB 1.1 và thiết bị ngoại vi USB

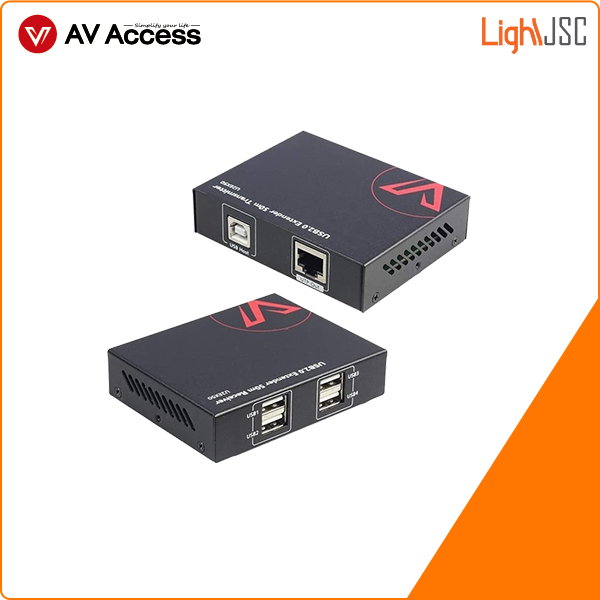

The U2EX50 USB 2.0 extender is a slim transmitter (TX) receiver (RX) pair that can extend a USB-HID device signal up to 80m/263ft and USB 2.0 storage device up to 60m/197ft via Cat X cable. The built-in USB HUB in the RX supports up to 4 USB 2.0 ports. The TX can be powered by the host such as a PC.
Features of U2EX50 USB/ KVM Extender
- Supports high-speed USB 2.0 (Up to 480Mbps) storage device over Cat5e/Cat6 cable up to 60m (197 ft) and USB-HID device up to 80m (263ft)
- 4 x USB device connections supported by the Hub
- TX is powered by USB port, RX is powered by lockable DC supply with 500mA to each USB device
- True plug-and-play, 100% hardware solution with no driver installation required
- Supports all major operating systems: Windows, Mac OS and Linux
- Compatible with USB 1.1 and USB peripherals
Mini Size, Great Performance

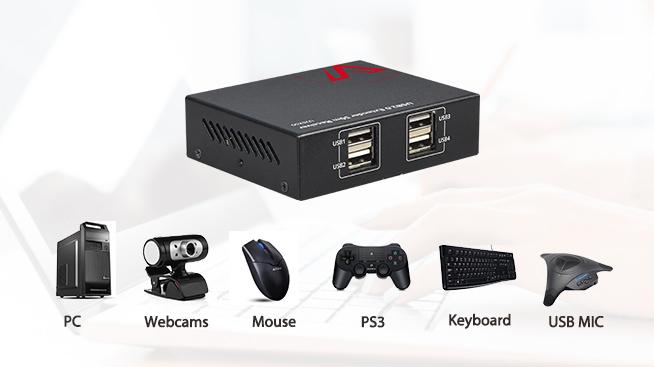

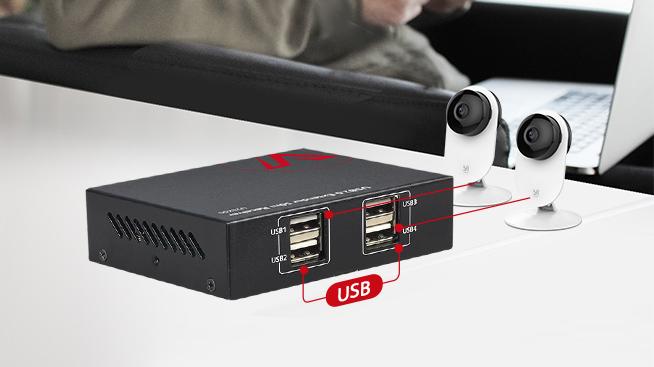

You can connect up to four USB2.0 peripherals to the device, such as keyboard, mouse, microphone, camera, etc. It can transmit high-speed USB2.0 signal (max 480Mbps) up to 60m/197ft via single Cat X cable.
Better Compatibility, More Fun
The device can work with all operating systems (Windows, MacOS, Android, Linux); it ensures high-speed and stable transmission for PC, laptop, PS3, webcam, game, video conference, surveillance system, etc.
Plug & Play, Setup in Minutes
The compact USB 2.0 extender is quite simple to set up and requires no additional drivers to install. You can enjoy high-speed USB signal transmission in minutes.
Wide Applications
Because of its high compatibility, the extender can be applicable to your video conference system, personal entertainment system, public or personal surveillance system, etc.

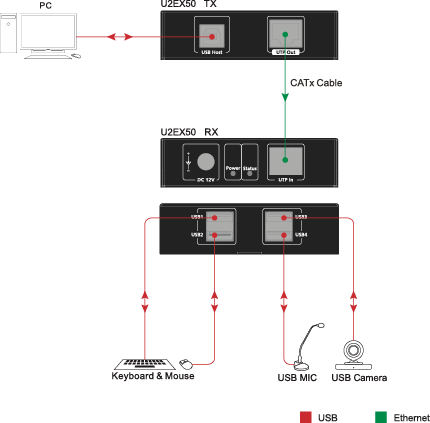

Diagram of U2EX50 USB/ KVM Extender
Specification of U2EX50 USB/ KVM Extender
| Technical | |
|---|---|
| I/O Connections | TX: 1 x USB Type-B 1 x UTP Out RX: 1 x UTP IN 1 x DC 12V IN 4 x USB2.0 |
| General | HDMI: HDMI 2.0 / HDCP 2.2 |
| Power Supply | DC 12V 0.5A power adapter |
| Power Consumption | 4.5W |
| Bandwidth | USB 2.0 up to 480Mbps |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) 10% to 90%, non-condensing |
| ESD Protection | Human Body Model: ±8kV (air-gap discharge)/ ±4kV (contact discharge) |
| Surge Protection | Voltage: ±1k V |
| Dimensions | 90mm × 71mm × 25mm/3.54’’ × 2.79’’ × 0.98’’ |
| Weight | 0.35kg/0.77lb |
