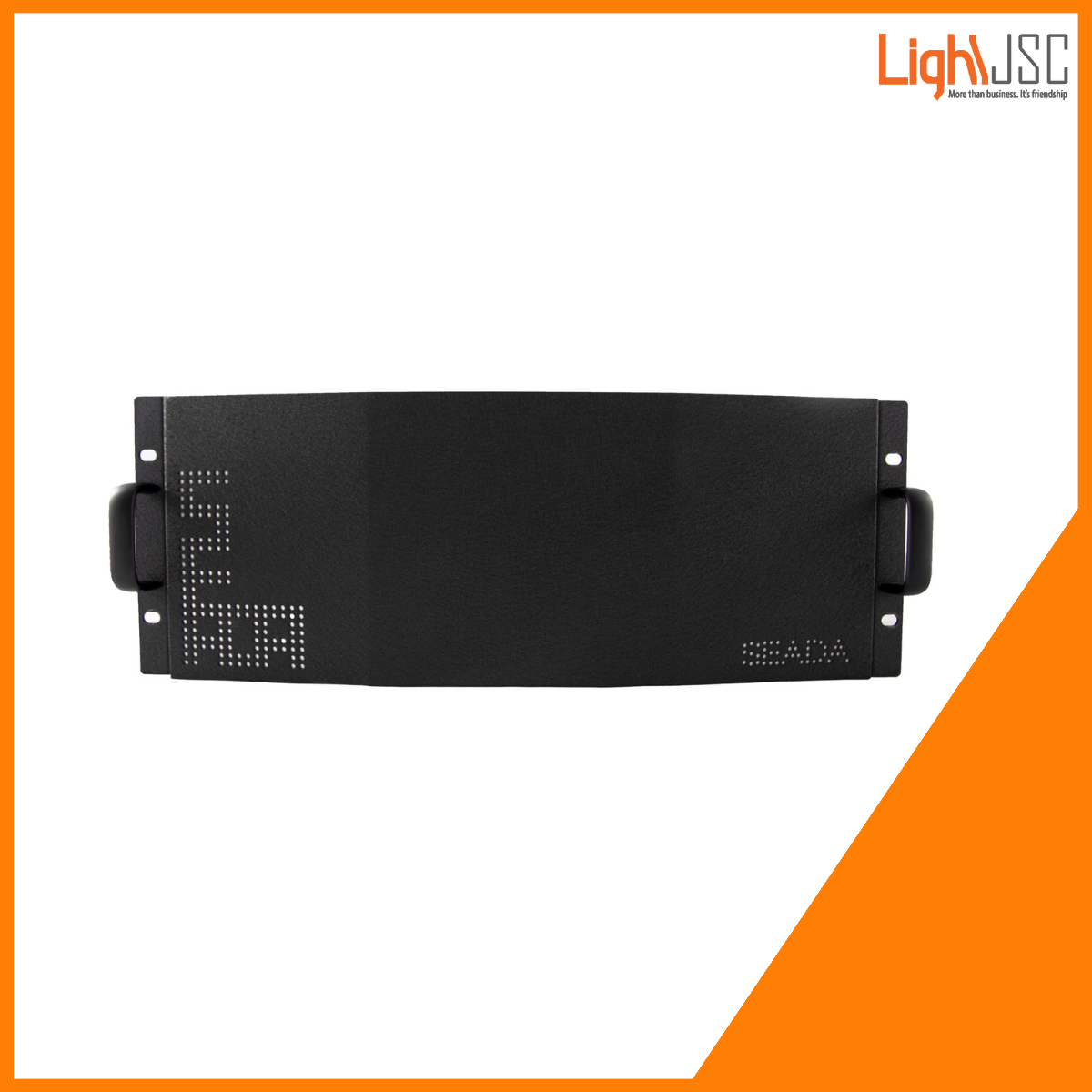

Solarwall SW4008 Video Wall Controller
- Advanced Crossbar technology
- Robust FPGA video data process technology
- No PC vulnerabilities
- Input signal preview
- Four-window overlay mode
- 1 to 72 display outputs
- Multi output option: DVI-I (Digital & Analog), SDI, HDBaseT, Optical Fibre
- 1-256 1080p IP camera inputs capture
- 1-128 HD DVI/HDMI/RGB inputs capture
SW4008 Video Wall Controller is a medium size video wall controller which offers up to 8 outputs and 24 HD inputs simultaneously. It is perfect for a small video wall with a handful of input signals.
Key features of SEADA SW4008
|
|
Description of SW4008
With its 4U chassis, SW4008 supports a video wall with up to 8 HD displays and is able to output 32 output windows simultaneously. It is able to capture all sorts of digital and analog signals: DVI, HDMI, 3G/HD-SDI, Component and CVBS signals. Besides its ability of capturing 4K content, it also supports to decode and capture IP streaming signals in the very same controller. HDCP compliance allows SW4008 to capture and display content-protected HD signals.
SW4008 is flexible in output and input configuration. It can be customised for the customers and also easy to be upgraded simply by changing the input/output cards in the chassis.
Specifications
| CONTROLLER CHASSIS | 4U 19” ANST/EIA RS-310C STANDARD INDUSTRIAL CHASSIS |
| DIMENSIONS | 482*380*175 |
| MAX INPUT CHANNEL | 24 HD CAPTURE CHANNELS OR 96 CVBS CAPTURE |
| INPUT FORMAT | DVI/HDMI/VGA, SDI, VCBS, DL_DVI, HDBASET, FIBER OPTICAL, IP STREAMING |
| MAX OUTPUT CHANNEL | 8 DISPAY CHANNELS |
| OUTPUT FORMAT | DVI/HDMI/VGA, SDI, HDBASET, FIBER OPTICAL |
| HDCP SUPPORT | YES |
| POWER SUPPLY | SINGLE POWER SUPPLY |
| INPUT VOLTAGE | AC 110V TO 240V, 50/60HZ |
| OPERATION SYSTEM | WINDOWS2000/XP/VISTA/7/8 |
| WARRANTY | 2 YEARS |
| OPERATING TEMPERATURE RANGE | 0/40 DEGREES CENTIGRADE |
| OPERATING HUMIDITY RANGE | 10%~90% NON-CONDENSING |
| STORAGE TEMPERATURE RANGE | 10~60 DEGREES CENTIGRADE |
| STORAGE HUMIDITY RANGE | 10%~90% |
| CONTROL INTERFACE | RS232 OR ETHERNET PORT |
