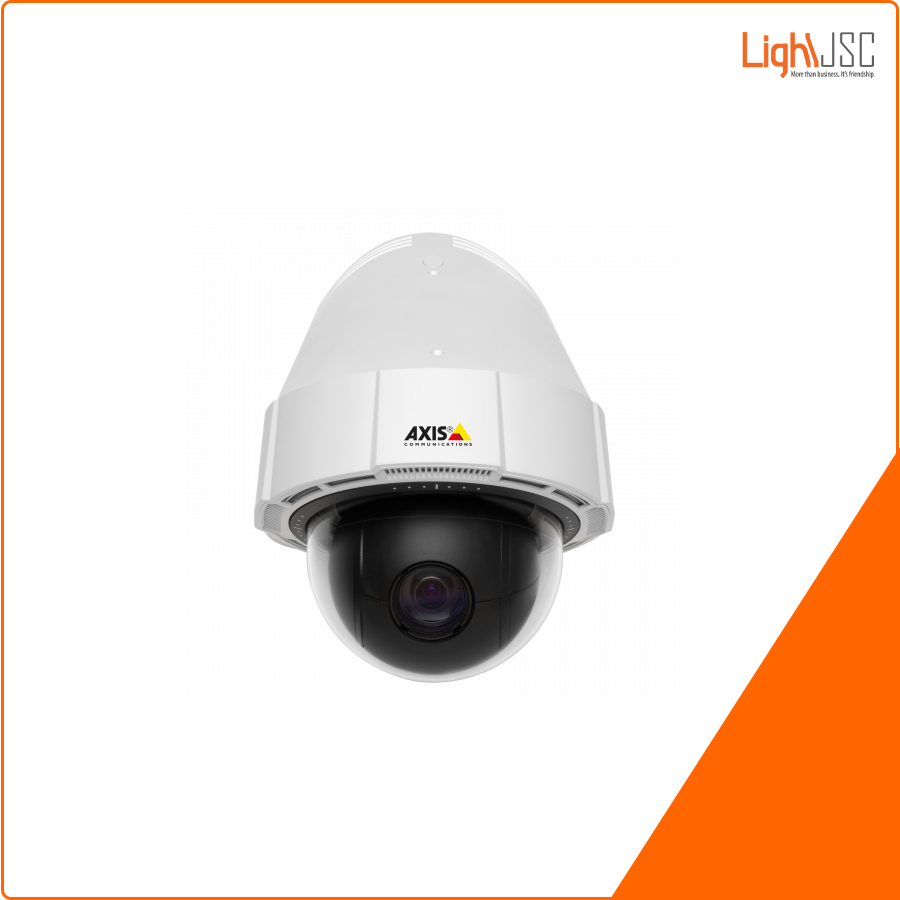

AXIS P5415-E PTZ Network Camera
Intelligent direct drive HDTV 1080p PTZ camera
- Outdoor wall-mount design for easy installation
- Repaintable, integrated sunshield
- Durable, low maintenance mechanics
- HDTV 1080p and 18x optical zoom
- Two-way audio & input/output ports
Simplified installation and low-maintenance mechanics
The camera’s built-in wall bracket enables easy installation and lowers total installation costs since a separate mounting accessory is not required. The integrated sunshield can be easily removed and repainted to match the color of a building façade. The sloping form helps the camera resist attempts by vandals to pull it down with a rope. The camera has a direct drive pan/tilt system that enables unsurpassed endurance. With no belts or gears, AXIS P5415-E is a reliable, low-maintenance PTZ camera.
Wide area coverage and zoomed-in details
The 18x optical zoom with autofocus, in combination with the HDTV 1080p resolution, provides highly detailed zoomed-in views. In low light or night-time conditions, the camera’s automatic day/night functionality enables it to make use of infrared light from available light sources to produce high quality black and white video. When mounted on the corner of a building, AXIS P5415-E enables a 270° pan for wide area coverage. Support for Advanced Gatekeeper enables the camera to automatically pan, tilt and zoom in to a preset position when motion is detected in a predefined area.
Extended functionality inside
The camera features a hidden junction box that supports two-way audio, a memory card slot, four configurable inputs/outputs to external devices, and the option of using either 24 V DC or Power over Ethernet Plus (IEEE 802.3at).
Technical specifications
Model: Camera Axis P5415-E PTZ
General
| Built-in IR | – |
| OptimizedIR | – |
| Local storage (memory card slot) | Yes |
| Operating temperature | -20 to 50 °C |
| Outdoor Ready | Yes |
| Vandal rating | IK07 |
| IP rating | IP66 |
| Designed for repaint | Yes |
Camera
| Image sensor | CMOS |
| Image sensor size | 1/2.9 |
| Sensor size in megapixel | 2.0 |
| Lightfinder | – |
| Wide dynamic range | WDR |
| Min illumination/ light sensitivity (Color) | 0.50 lux |
| Min illumination/ light sensitivity (B/W) | 0.04 lux |
Analytics
| Autotracking version | – |
| Orientation aid | – |
Video
| Max video resolution | 1920×1080 |
| Max frames per second | 25/30 |
| Day and Night functionality | Yes |
| Electronic image stabilization | – |
Lens
| Focal length | 4.7 – 84.6 mm |
| Horizontal field of view | 59 – 4 ° |
| Vertical field of view | 35 – 2 ° |
Pan, Tilt, Zoom
| Pan range | +/-135 |
| Tilt range | 90 |
| Guard tour | limited guard tour |
| Optical zoom | 18 |
| Digital zoom | 12 |
Compression
| Zipstream | – |
| H.264 | Baseline, Main |
| H.265 | – |
| Motion JPEG | Yes |
Audio
| Audio Support | Yes |
| Built-in microphone | – |
System Integration
| Audio detection | Yes |
| Active tampering | – |
| Alarm inputs/outputs | 4 |
Network
| PoE Class | 4 |
Security
| Signed firmware | – |
| Secure boot | – |
| TPM | – |
| manufacture | Aten, Axis Communications |
|---|
