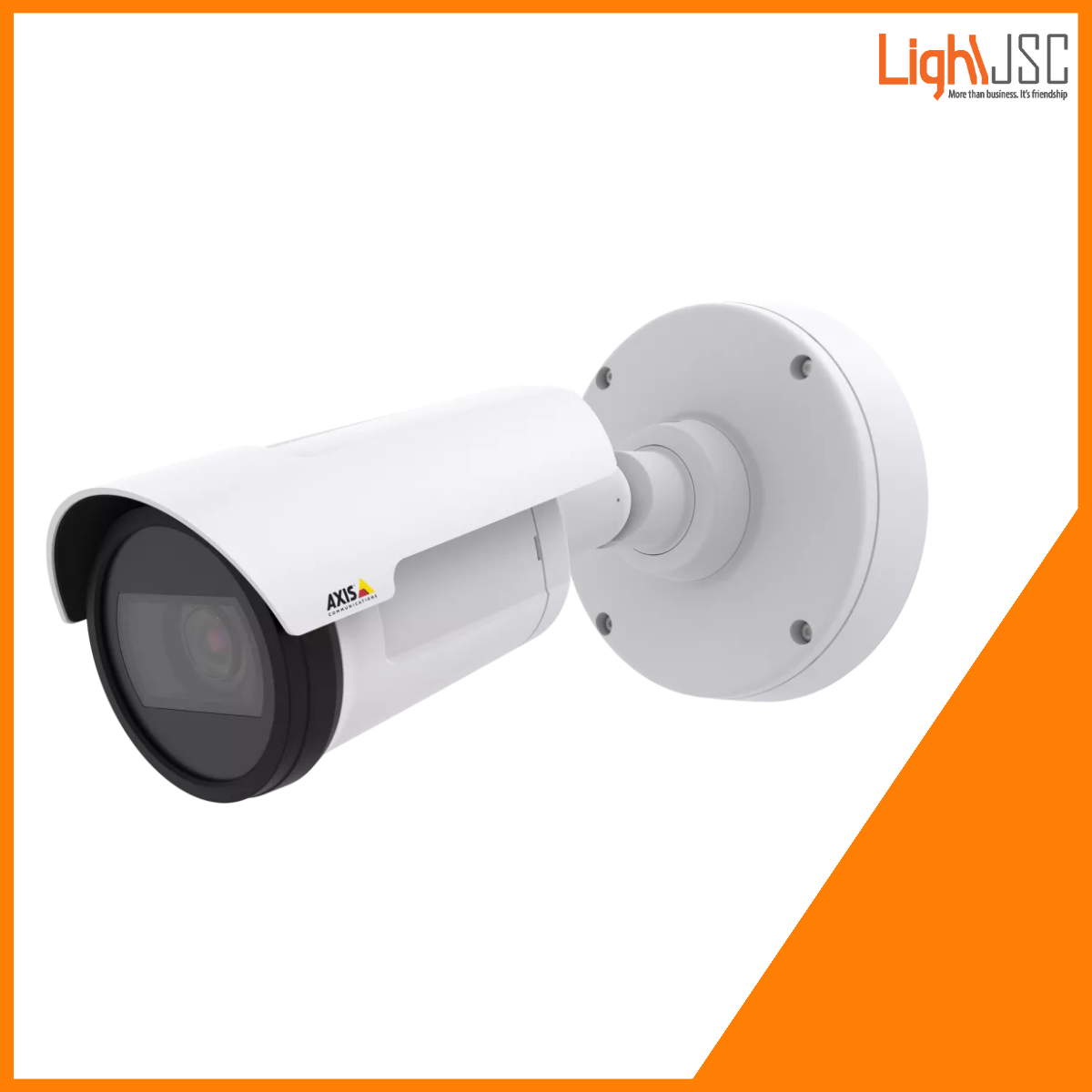

AXIS P1435-LE Network Camera
Compact and fully-featured HDTV surveillance for any light condition
- Slim, lightweight bullet camera
- HDTV 1080p at up to 60 fps
- OptimizedIR
- Lightfinder, WDR and Zipstream
- Two lens alternatives
Excellent image quality
With a varifocal, P-Iris lens, AXIS P1435-LE provides excellent image quality in HDTV 1080p resolution at up to 60 frames per second. The P-Iris control provides optimal depth of field, resolution, image contrast and clarity. The camera offers two lens alternatives; a wide 3-10.5 mm lens for wide area surveillance and a tele 10-22 mm lens for telephoto zoom or surveillance from a distance. In addition, the camera offers Axis Lightfinder as well as WDR – Forensic Capture for perfectly balanced video in scenes with strong variations in light or low-light.
Built-in IR-LEDs and I/O ports
AXIS P1435-LE offers OptimizedIR, providing an adaptable angle of IR illumination and automatic exposure resulting in high-quality and low-noise video. The improved IR LED illumination is perfect for discovering objects in a range of up to 30 meters (98 ft) using the wide 3-10.5 mm lens or 50 meters (164 ft) using the 10-22 mm tele lens. Furthermore, the camera includes input/output portst that can be used for simple notification to an alarm panel or control of a relay. The input is also ideal when using a PIR motion detector.
Ease of installation and edge storage
AXIS P1435-LE has a compact, low weight casing and integrated bracket for wall or ceiling mount. To further facilitate installation, a wide range of mounting accessories are available such as AXIS Weather Shield K for protection against sun and rain. AXIS P1435-LE offers easy installation with remote zoom and focus for fine tuning of the picture from a computer. Power over Ethernet supplies power to the cameras through the network, eliminating the need for power cables and reduces installation costs.
Furthermore, AXIS P1435-LE offers support for edge storage making it possible to record video directly to a storage such as a microSD/SDHC™* card and includes Axis Zipstream for lowered bandwidth and storage requirement.
*microSD and microSDHC are trademarks of SD-3C, LLC.
Technical specifications
Model: Camera Axis P1435-LE 10.5 mm / AXIS P1435-LE 22 mm
General
| Remote focus | Yes |
| Remote zoom | Yes |
| Built-in IR | Yes |
| Local storage (memory card slot) | Yes |
| Operating temperature | -30 to 60 °C |
| Outdoor Ready | Yes |
| Vandal rating | IK08 |
| IP rating | IP66, IP67 |
| Designed for repaint | Yes |
| Sustainability | PVC free |
Camera
| Image sensor | CMOS |
| Image sensor size | 1/2.8 |
| Sensor size in megapixel | 2.1 |
| Lightfinder | Lightfinder |
| Wide dynamic range | Forensic Capture |
| Min illumination/ light sensitivity (Color)* | 0.12 / 0.16 lux |
| Min illumination/ light sensitivity (B/W) | – |
Video
| Max video resolution | 1920×1080 |
| Max frames per second | 50/60 |
| Electronic image stabilization | – |
Lens
| Focal length | 3 – 10.5 / 10 – 22 mm |
| Optical zoom | – |
| Horizontal field of view | 95 – 35 / 34.5 – 18 ° |
| Vertical field of view | 51 – 20 / 20 – 11 ° |
Compression
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | – |
| Motion JPEG | Yes |
Audio
| Audio Support | – |
Network
| PoE Class | 3 |
Security
| Signed firmware | Yes |
| Secure boot | – |
Power
| Power (max) | – |
| Power (average) | – |
* Some technical specifications may vary depending on which hardware option you choose.
| manufacture | Aten, Axis Communications |
|---|
