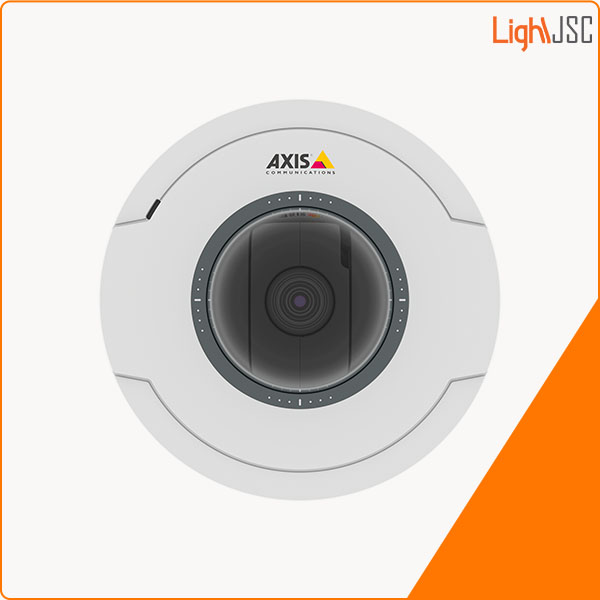

AXIS M5065 PTZ Network Camera
Palm-sized PTZ camera with 5x optical zoom and Wireless I/O
- Wireless I/O for Z-Wave Plus® devices
- Pan, tilt, zoom with 5x optical zoom and 10x digital zoom
- HDTV 1080p/ 2MP
- Autofocus and WDR
- Built-in analytics and Zipstream
Cut the cords – with wireless I/O connectivity
AXIS M5065 features wireless I/O connectivity with Z-Wave Plus® devices. This means that the camera can communicate with up to six devices in a system setup using on/off commands. If, for example, a door or a window is opened, the device can automatically alert the camera to change its preset position. Installation costs are kept down since no additional cabling is needed and the devices can be flexibly relocated.
See it all – and see it clearly
AXIS M5065 gives you good, detailed video with 71° horizontal field of view. PTZ functionality – with 5x optical zoom and autofocus – lets you benefit from sweeping overviews and zoom in to get the details. Full HDTV 1080p resolution ensures great image usability and Zipstream significantly lowers bandwidth and storage requirements while preserving high-quality images.
Built-in analytics
- Scream detection — an event is triggered when the built-in microphone detects a scream in the camera’s proximity
- Audio volume detection— an event is triggered via the Axis event system when the built-in microphone detects that a configurable volume threshold has been exceeded
- Removed object detection— an even is triggered when a pre-selected object in the camera’s view is removed
- AXIS Video motion detection 4 — an event is triggered when movement is detected by the PTZ camera in a predefined area of your choice
Technical specifications
Model: Camera Axis M5065 PTZ Network Camera
Camera
| Image sensor | CMOS |
| Image sensor size | 1/4.85 |
| Sensor size in megapixel | 2.0 |
| Lightfinder | – |
| Wide dynamic range | WDR |
| Min illumination/ light sensitivity (Color) | 1.20 lux |
| Min illumination/ light sensitivity (B/W) | – |
General
| Built-in IR | – |
| OptimizedIR | – |
| Local storage (memory card slot) | Yes |
| Operating temperature | 0 to 45 °C |
| Outdoor Ready | – |
| Vandal rating | – |
| IP rating | IP51 |
| Designed for repaint | Yes |
Analytics
| Autotracking version | – |
| Orientation aid | – |
Video
| Max video resolution | 1920×1080 |
| Max frames per second | 30 |
| Day and Night functionality | – |
| Electronic image stabilization | – |
Lens
| Focal length | 2.2 – 11.0 mm |
| Horizontal field of view | 71-14 ° |
| Vertical field of view | 40-8 ° |
Pan, Tilt, Zoom
| Pan range | +/-179 |
| Tilt range | 90 |
| Guard tour | – |
| Optical zoom | 5 |
| Digital zoom | 10 |
Compression
| Zipstream | Yes |
| H.264 | Baseline, High, Main |
| H.265 | – |
| Motion JPEG | Yes |
Audio
| Audio Support | Yes |
| Built-in microphone | Yes |
System Integration
| Audio detection | Yes |
| Active tampering | – |
| Alarm inputs/outputs | 0/0 |
Network
| PoE Class | 3 |
Security
| Signed firmware | – |
| Secure boot | – |
| TPM | – |
