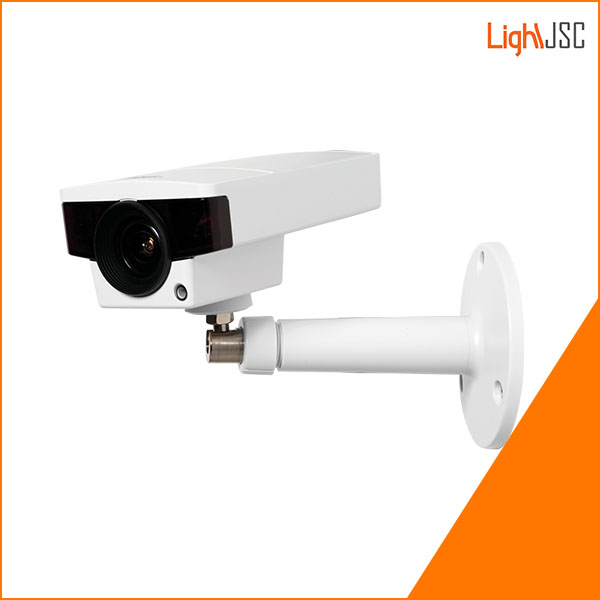

AXIS M1145-L Network Camera
Compact and affordable with OptimizedIR
- 2 MP / HDTV 1080p
- P-iris control
- Edge storage
- Ease of installation
- I/O support
AXIS M1145-L Network Camera is an affordable and compact camera perfectly suited for boutiques, restaurants, hotels and offices or other places where surveillance is required during day and night.
Built-in IR-LEDs with OptimizedIR
AXIS M1145-L offers Axis OptimizedIR, a power-efficient LED technology that provides an adaptable angle of IR illumination and discreet integration of IR LEDs. The camera provides automatic illumination of a scene in complete darkness and is perfect for discovering objects in a range of up to 15 meters (50 ft). Plus, AXIS M1145-L offers remote zoom and focus that eliminates the need for hands-on fine tuning by ensuring an optimized camera angle.
Excellent image quality
With a varifocal P-iris lens, AXIS M1145-L provides excellent HDTV 1080p image quality in full frame rate. The P-iris control provides optimal depth of field, image contrast and clarity. The cost-effective, compactly designed camera offers multiple H.264 and Motion JPEG streams that can be individually optimized for bandwidth and storage efficiency. The camera supports digital pan/tilt/zoom, which allows a view cropped from the full view to be streamed for viewing or recording.
Edge storage and I/O ports
AXIS M1145-L offers a flexible surveillance system with support for edge storage that allows for recording video directly to a storage such as a microSD/SD/SDHC card. The input/output port can be used for simple notification to an alarm panel or control of a relay or similar. The input is also ideal when using Axis PIR Motion Detector. Furthermore, Power over Ethernet supplies power to the camera via the network, eliminating the need for power cables and reducing installation costs.
Technical specifications
Model: Camera Axis M1145-LNetwork Camera
General
| Remote focus | – |
| Remote zoom | – |
| Built-in IR | Yes |
| Local storage (memory card slot) | Yes |
| Operating temperature | 0 to 50 °C |
| Outdoor Ready | – |
| Vandal rating | – |
| IP rating | – |
| Designed for repaint | – |
| Sustainability | PVC free |
Camera
| Image sensor | CMOS |
| Image sensor size | 1/2.9 |
| Sensor size in megapixel | 2.0 |
| Lightfinder | – |
| Wide dynamic range | Dynamic Contrast |
| Min illumination/ light sensitivity (Color) | 0.40 lux |
| Min illumination/ light sensitivity (B/W) | – |
Video
| Max video resolution | 1920×1080 |
| Max frames per second | 25/30 |
| Electronic image stabilization | – |
Lens
| Focal length | 3-10.5 mm |
| Horizontal field of view | 95-34 ° |
| Vertical field of view | 47-19 ° |
| Lens mount | – |
| Replaceable lens | – |
Compression
| Zipstream | – |
| H.264 | Baseline, Main |
| H.265 | – |
| Motion JPEG | Yes |
Audio
| Audio Support | – |
Network
| PoE Class | 3 |
| Wireless | – |
Security
| Signed firmware | – |
| Secure boot | – |
Power
| Power (max) | – |
| Power (average) | – |
| DC input voltage | – |
