Aten VP1421 4×2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite
- HDMI (3D, Deep Color); HDCP 1.4 Compatible
- Built-in scaler on each output port to support the scaling function for different video resolutions
- Seamless Switch™– provides continuous video streams, real-time switching and stable signal transmission
- Audio-enabled
The Aten VP1421 4 x 2 True 4K Presentation Matrix Switch with Scaling, DSP, and HDBaseT-Lite is a multi-in-one presentation switch that integrates a video matrix, True 4K scaler, HDBaseT extender, audio DSP, and analog-to-digital converter functions into a single compact enclosure, ideal for meeting rooms and educational spaces.
True 4K, HDR Visual Clarity
Supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR to deliver vivid content in every presentation.
Smooth AV Switching Scaled to Perfection

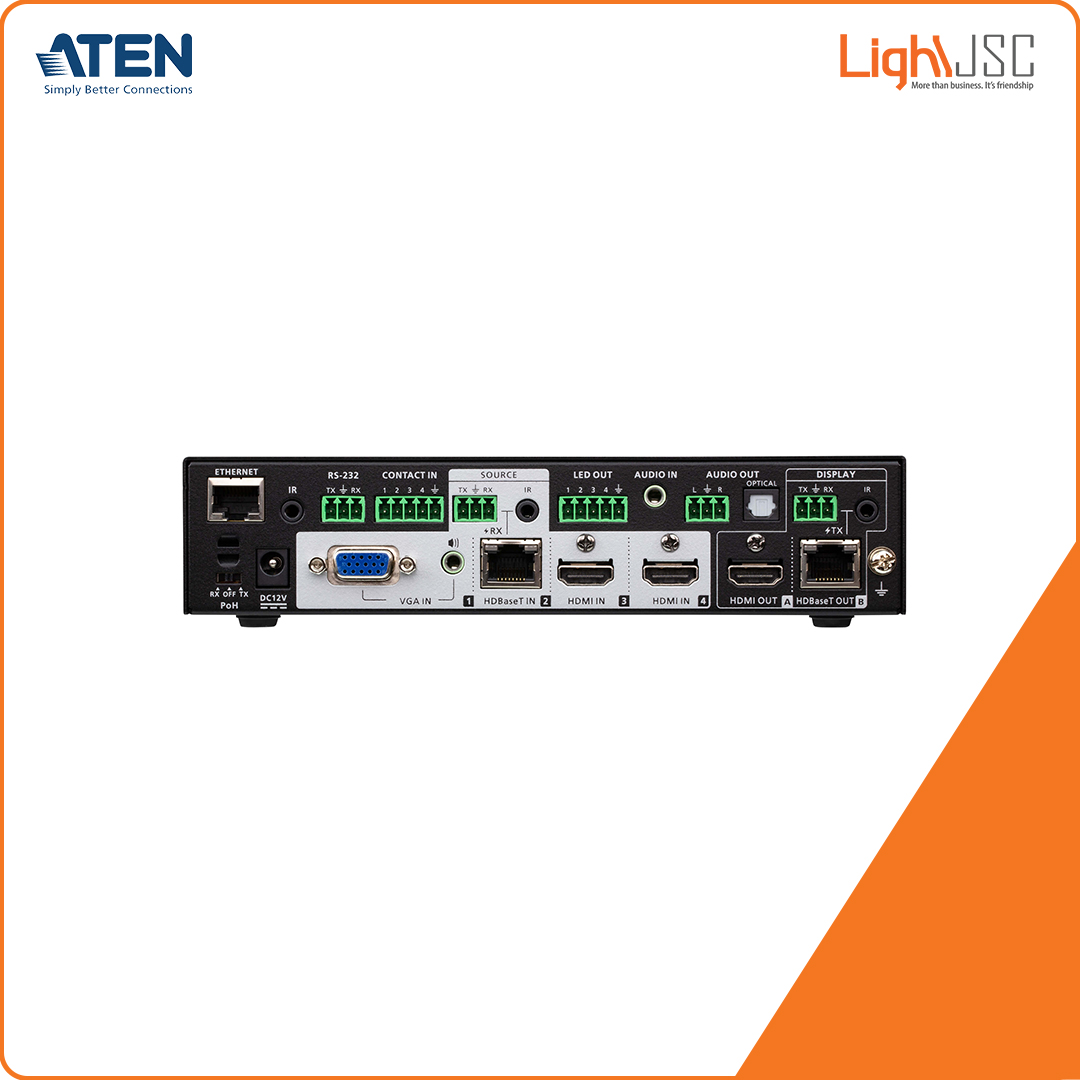

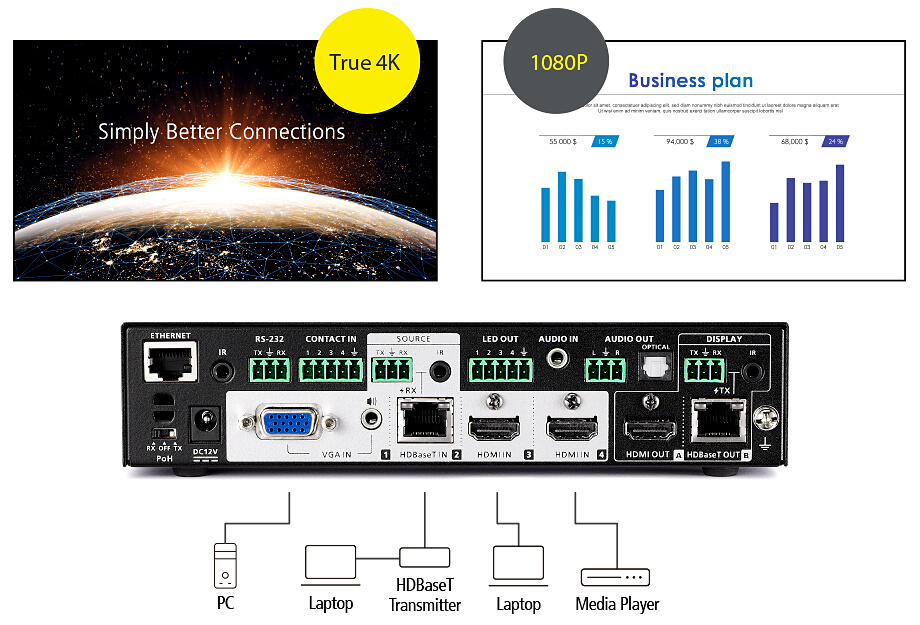

Connect up to 4 sources (1 HDBaseT, 2 HDMI, 1 VGA), smoothly switch between them and display contents scaled perfectly to True 4K and 1080p simultaneously.
HDBaseT Extended Transmission over One Cable
Simplifies cabling and transmits AV, power, and bi-directional RS-232 and IR control signals up to 140m via Cat 6/6a or ATEN2L-2910Cat 6 cables (applying both HDBaseT input and output ports).
Built-in Advanced Audio DSP
Supports microphone input with selectable 48V Phantom Power and allows microphone input to be mixed with program audio and embedded into display output while automatically reducing program audio to enhance speech audibility.
Flexible Audio Embedding/De-Embedding
Supports stereo audio embedding into HDMI output or separation to Audio Line Out and Optical Audio Out. Extract HDMI and HDBaseT audio to different audio outputs as well to ease adaptation to you preferred audio setup.
Versatile Control, Streamlined Operations

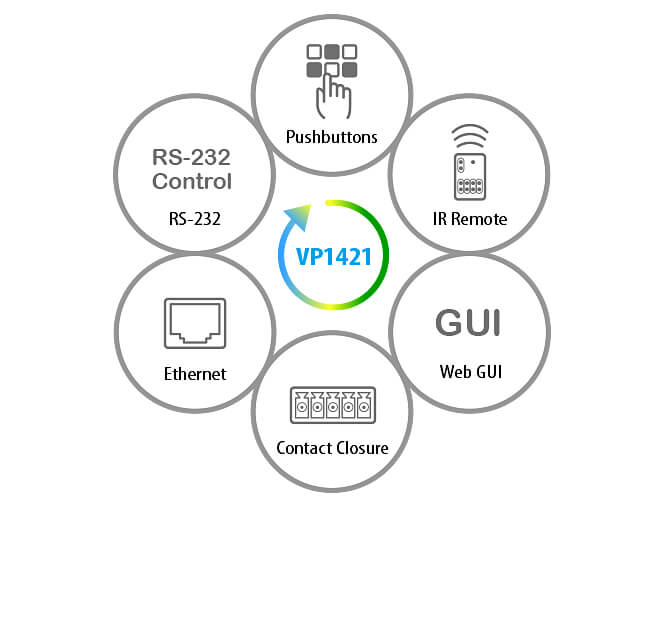

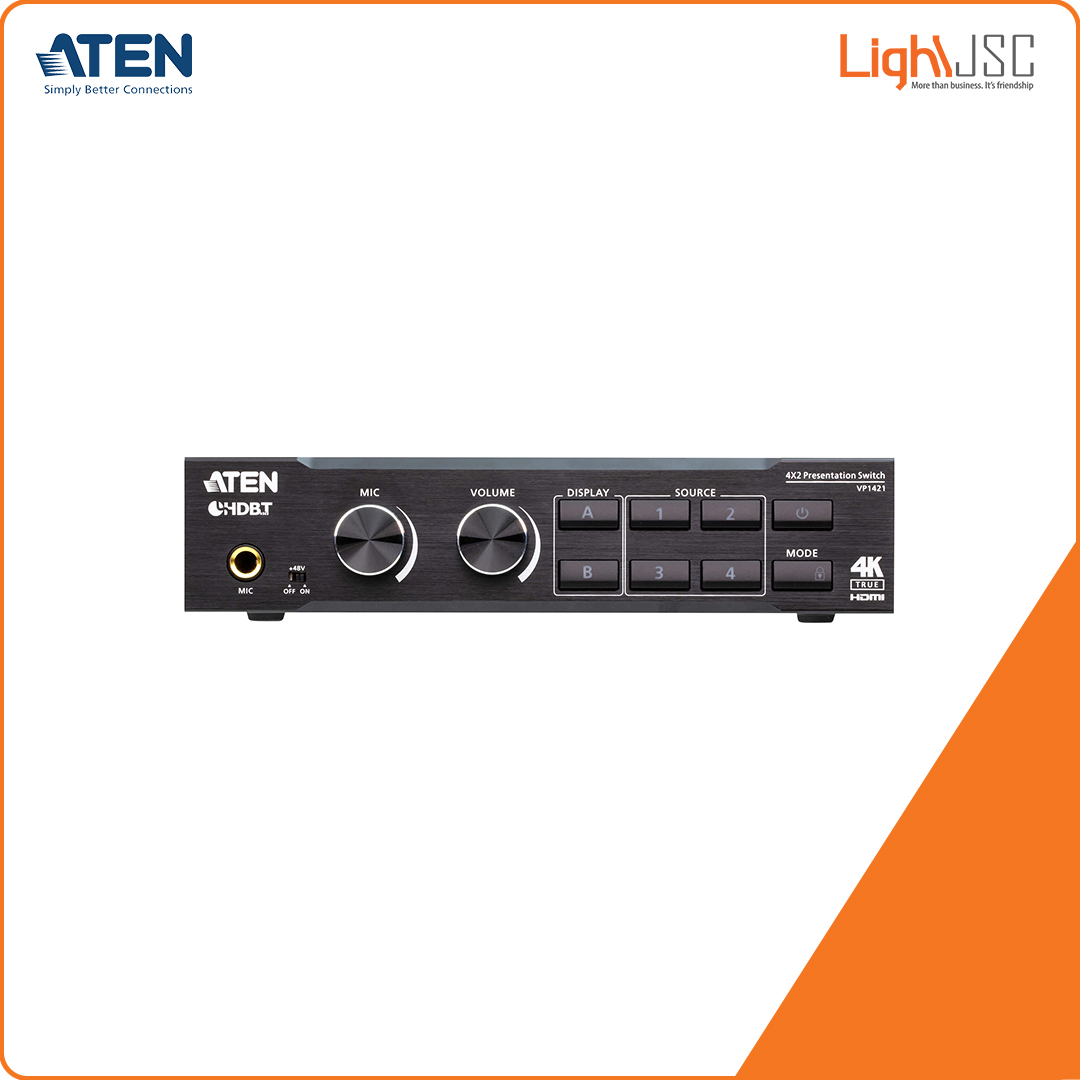

Control via front-panel pushbuttons, IR remote, web-based GUI and any control interface via RS-232, Ethernet, and Contact Closure to streamline your operations.
Package Contents
-
- 1x VP1421 4 x 2 True 4K Presentation Matrix Switch
- 1x IR Receiver
- 1x IR Remote Control
- 4x 3-pole Terminal Blocks
- 2x 5-pole Terminal Blocks
- 1x Power Adapter
- 1x VPK104 4-Key Contact Closure Remote Pad
- 4x 4-pole Terminal Blocks
- 1x User Instructions
