Bộ kéo dài HDMI VGA 4K, HDBaseT. AV Access 4KEX70-VH
- Truyền tải chất lượng 4Kx2K/ 60Hz (4: 2: 0) lên đến 40m, 1080P/ 60Hz lên đến 70m qua cáp Cat 6a / 7
- Truyền tải chất lượng 4Kx2K/ 60Hz (4: 2: 0) lên đến 35m, 1080P/ 60Hz lên đến 60m qua cáp Cat 5e
- Truyền tín hiệu điều khiển hồng ngoại hai chiều cùng với tín hiệu HDMI, đường truyền RS232 hai chiều
- Tự động chuyển đổi giữa đầu vào VGA và HDMI, HDMI IN có mức độ ưu tiên cao hơn so với VGA IN nếu cả hai được kết nối, HDMI 1.4 tương thích với 4K và HDCP 2.2

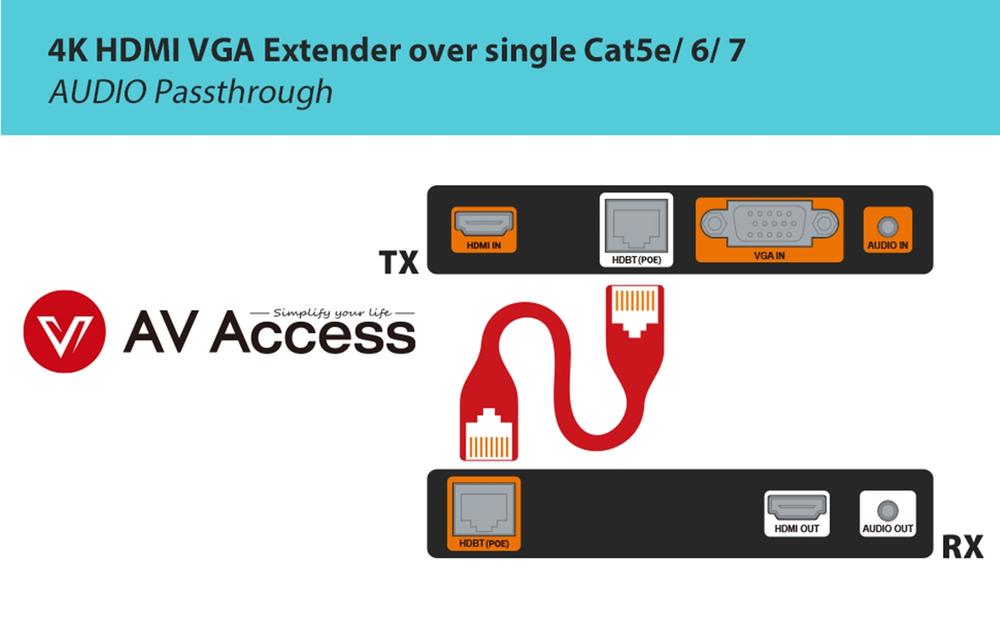

VGA/HDMI OVER HDBASET EXTENDER

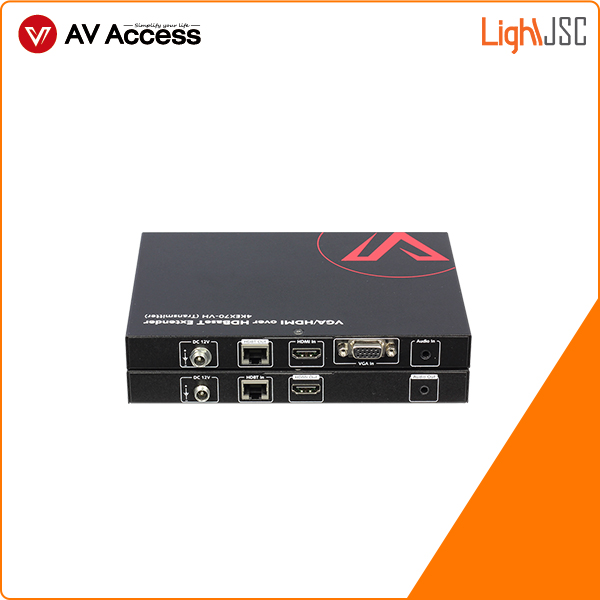

The 4KEX70-VH HDMI extenderis a slim transmitter receiver pair which is designed to extend HDMI 1080P@60Hz signals up to 70 meters and 4K@60Hz signals up to 40m via a single Cat 6a/7 cable. The transmitter can supply the power for the receiver. You can control the source from the display’s location or control the display from source’s location via IR pass-through function.
Features of 4KEX70-VH HDMI Extender
- Via Cat 6a/7 cables, 4Kx2K@60Hz (4:2:0) output up to 40m, 1080P@60Hz up to 70m
- Via Cat 5e cable, 4Kx2K@60Hz (4:2:0) output up to 35m, 1080P@60Hz up to 60m
- Transfers bi-directional infrared control signal together with the HDMI signal
- Transmitter supplies the power for receiver
- Auto-switch between VGA and HDMI inputs, HDMI IN has higher priority over VGA IN if both are connected
- HDMI 1.4 with 4K and HDCP 2.2 compliant
- Supports Bi-directional RS232 pass through
4K60 Ultra-HD Image
With HDMI technology which supports up to 4K@60Hz (4:2:0) resolution, the extender brings ultra-high definition picture with more vivid visual effect.
Excellent Audio Enjoyment
The extender supports DTS:X, Dolby TrueHD and LPCM 2.1/5.1/7.1CH, so it can work perfectly with AV receiver, home cinema, speaker, amplifier, etc.
VGA/HDMI Input
VGA and HDMI inputs are automatically selected and switched when the unit detects a signal, with a smart detection feature prioritizing HDMI over VGA if two devices are transmitting at the same time.

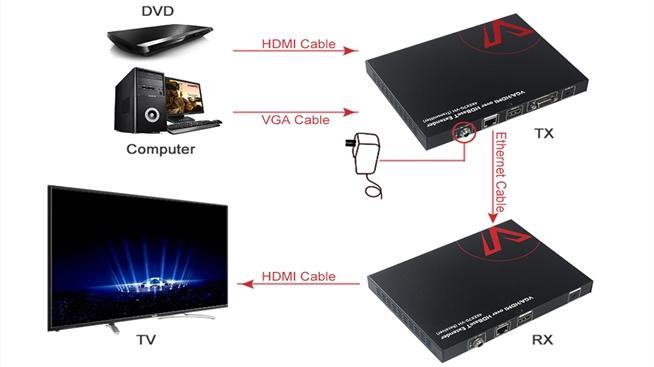

Diagram of 4KEX70-VH HDMI Extender
Specification of 4KEX70-VH HDMI Extender
| Technical | |
|---|---|
| Video Signal Type |
HDMI 1.4 with 4K |
| Input/Output Resolution | HDMI: Up to 4K@60Hz YUV4:2:0 VGA: Up to 1920 x 1200@60Hz |
| Audio Format | Stereo, PCM 2.1/5.1/7.1, DTS, Dolby, pass through |
| General | |
|---|---|
| Operating Temperature |
0 °C to + 45°C (32°F to + 113 °F) |
| Storage Temperature | -20 °C to +70°C (-4°F to +158 °F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection |
Human Body Model: ±8kV (air-gap discharge)/ ±4kV (contact discharge) |
| Surge Protection |
Voltage: ±1 kV |
| Power Consumption (Max) |
19.2W (Pair) |
| Device Dimension (W x H x D) |
180mm × 20mm × 134.2mm |
|---|---|
| Product Weight |
Transmitter: 0.60kg Receiver: 0.58kg |
