Bộ kéo dài KVM HDMI 4K 100m, hỗ trợ POE và RS232, AV Access 4KEX100-KVM
- Thông qua cáp Cat 6/ 6a/ 7, truyền chất lượng 4K-2K/ 60Hz lên đến 100m, 1080P/ 60Hz lên đến 100m.
- Thông qua cáp Cat 5e, truyền chất lượng 4K-2K/ 60Hz lên đến 90m, 1080P/ 60Hz lên đến 100m.
- HDMI 1.4 với 4k/ 60Hz (4: 2: 0 8-bit) và tiêu chuẩn HDBT 2.0
- Truyền qua USB 2.0, cổngi USB-Host được tích hợp trong bộ phát và 4 cổng USB-Device được tích hợp trong bộ thu
4KEX100-KVM is a 100m 4K HDBaseT 2.0 Extender which offers the distribution of 4K@60Hz UHD video, Analog Stereo, power, RS232 and USB 2.0 up to 100m/330ft over a single Cat6 or above cable. It also supports 1080P@120hz, ideal for video extension of game sources.
With USB 2.0 pass-through and USB Host connector in TX, and USB Device connectors in RX, it provides remote source PC control with keyboard and mouse, interactive display operation, data transmission and USB streaming over distances up to 100m. Additional features include Bi-directional 3.5mm stereo pass through.
Features of 4KEX100-KVM USB/ HDMI Extender
- Via Cat 6/6a/7 cables, 4Kx2K@60Hz output up to 100m/330ft, 1080P@60Hz up to 100m/330ft
- Via Cat 5e cable, 4Kx2K@60Hz output up to 90m/300ft, 1080P@60Hz up to 100m/330ft
- HDMI 1.4 with 4k@60Hz (chroma sub-sampling 4:2:0 8-bit only) and HDBT 2.0 compliance
- One-way POH, TX (PSE) with PSU to power both TX and RX (PD)
- USB 2.0 pass through, USB-Host connector built in TX and 4 x USB-Device connector built in RX
- High-speed USB 2.0, up to 480Mbps, pass through over HDBaseT up to 100m/330ft
- Bi-directional Analog Stereo, and RS232 pass-through over HDBaseT
- Independent DIP switch for EDID management
- Does not support HDCP
4K60 Ultra-HD Image
With HDMI technology which supports up to 4K@60Hz (4:2:0) resolution, the extender brings ultra-high definition picture with more vivid visual effect. It also supports 1080P@120hz, ideal for video extension of game sources.

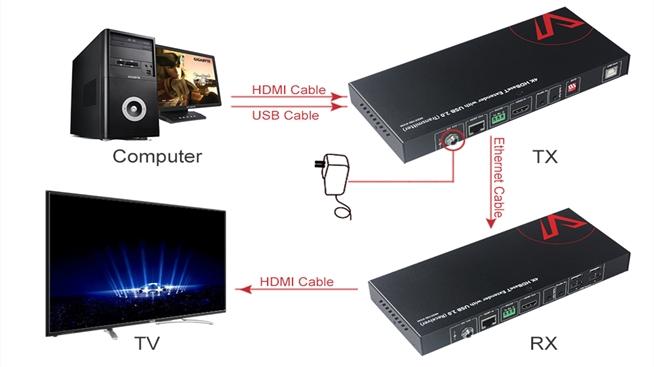

KVM Extension
The extender provides remote source PC control with keyboard and mouse, interactive display operation, data transmission and USB streaming over distances up to 330ft/100m. High-speed USB 2.0 up to 480Mbps passes through over HDBaseT with zero delay.
One-Way PoH
With 48V PoH integrated inside, the extender needs only one power supply connected to TX to power both units. Its 12V power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected.
Wonderful Gaming Experience with 1080P@120hz
For e-sports games where every second counts, low refresh rate can cause picture lag, greatly affecting the player’s performance. The KVM extender supports 1080P@120Hz video input, ensuring your game sources can be effectively extended. With the KVM extender, you can have an unprecedentedly enjoyable gaming experience.

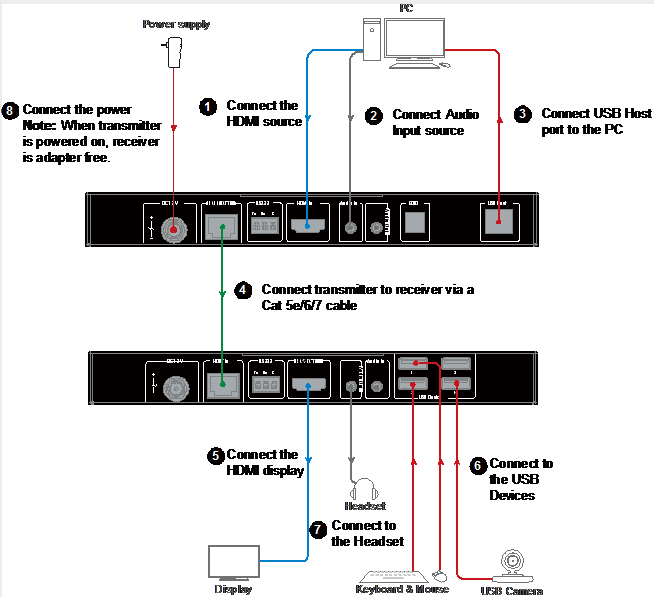

Diagram of 4KEX100-KVM USB/ HDMI Extender
Specification of 4KEX100-KVM USB/ HDMI Extender
| Transmitter | |
|---|---|
| Video |
|
| Input Signal Type | HDMI 1.4 with 4K |
| Input Resolution Support | 4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 1080P, 1080I, 720P, 576p, 576i, 480p |
| Maximum Pixel Clock | 297MHz |
| Output Signal Type | HDBT 2.0 |
| Output Output Resolution SupportType |
4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 1080P, 1080I, 720P, 576p, 576i, 480p |
| Audio | |
| Audio input | 3.5mm Mini jack, stereo |
| Audio output | 3.5mm Mini jack, stereo |
| Control |
RX is powered by TX: 13W； TX is powered by RX: 12.2W； TX and RX are powered separately: TX: 5.5W, RX: 7.6W |
| Control method | 1x RS232, 1x USB-Host; |
| General | 135 mm × 14.9 mm ×74.2 mm/ 5.31” x 0.59” x 2.92” |
| Device Dimensions | 135 mm × 14.9 mm ×74.2 mm/ 5.31” x 0.59” x 2.92” |
| Product Weight | 0.57lb/0.26kg |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) |
| Surge Protection | Voltage: ±1 kV (Ten times respectively for the positive and negative voltage) |
| Electrical Fast Transient/Burst | Data communication cord: 1 kV Power cord: 2 kV |
| Power Supply | DC 12V 2A |
| Power Consumption (Maximum) |
≤12 W (pair) |
| Device Dimensions (W x H x D) |
210mm x 25mm x 90.2mm / 8.27’’ x 0.98’’ x 3.55’’ |
| Product Weight | 0.44kg/0.97lb |
| Receiver | |
|---|---|
| Video |
|
| Input Signal Type | HDMI 1.4 with 4K |
| Input Resolution Support | 4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 1080P, 1080I, 720P, 576p, 576i, 480p |
| Maximum Pixel Clock | 297MHz |
| Output Signal Type | HDBT 2.0 |
| Output Output Resolution SupportType |
4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 1080P, 1080I, 720P, 576p, 576i, 480p |
| Audio | |
| Audio input | 3.5mm Mini jack, stereo |
| Audio output | 3.5mm Mini jack, stereo |
| Control |
RX is powered by TX: 13W； TX is powered by RX: 12.2W； TX and RX are powered separately: TX: 5.5W, RX: 7.6W |
| Control method | 1x RS232, 1x USB-Host; |
| General | 135 mm × 14.9 mm ×74.2 mm/ 5.31” x 0.59” x 2.92” |
| Device Dimensions | 135 mm × 14.9 mm ×74.2 mm/ 5.31” x 0.59” x 2.92” |
| Product Weight | 0.57lb/0.26kg |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 10% to 90%, non-condensing |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) |
| Surge Protection | Voltage: ±1 kV (Ten times respectively for the positive and negative voltage) |
| Electrical Fast Transient/Burst | Data communication cord: 1 kV Power cord: 2 kV |
| Power Supply | DC 12V 2A |
| Power Consumption (Maximum) |
≤12 W (pair) |
| Device Dimensions (W x H x D) |
210mm x 25mm x 90.2mm / 8.27’’ x 0.98’’ x 3.55’’ |
| Product Weight | 0.46kg/1.01lb |
